PROJECT
CNC Offset Generator
Faster Machine Dial-In • Fewer Rejects • Reduced Downtime

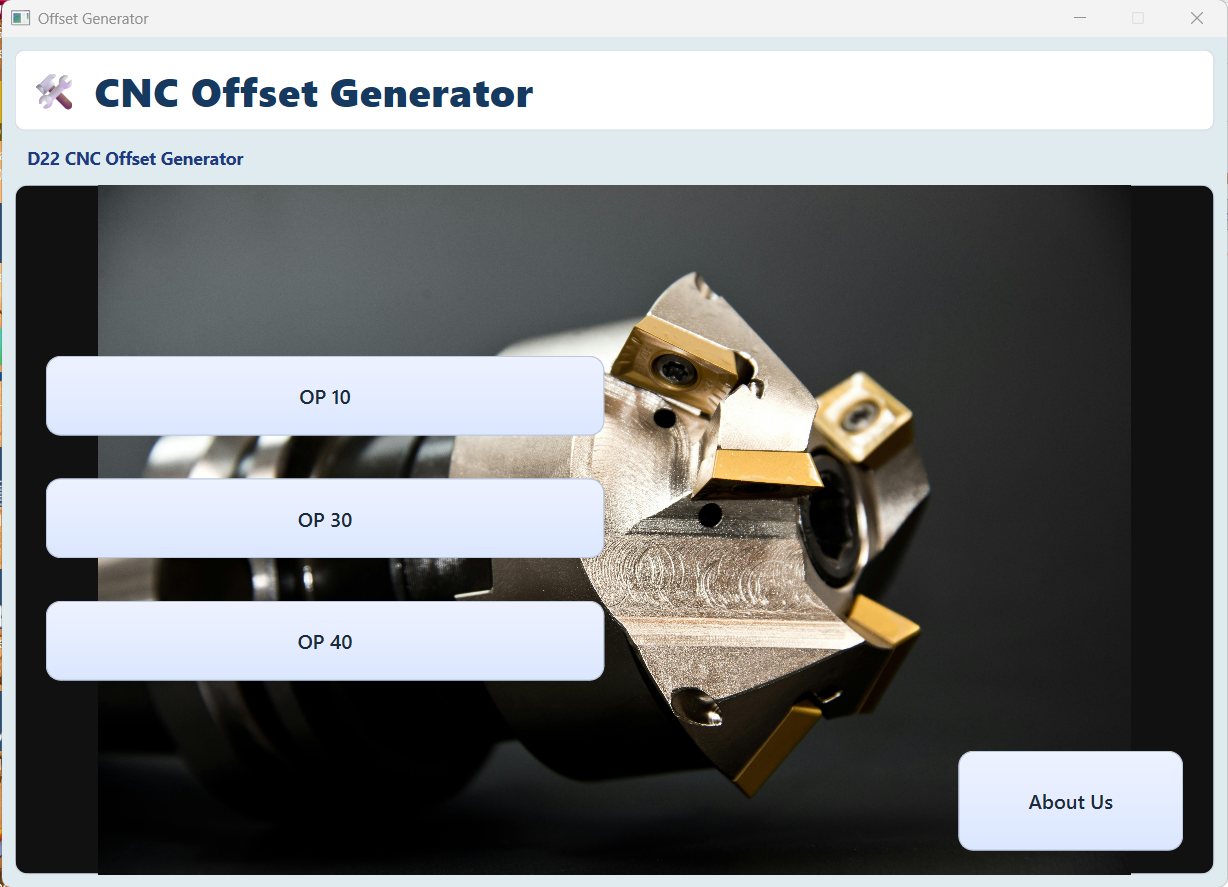

Turn inspection results into accurate machine offset adjustments. The system applies defined process logic for OP10, OP30 and OP40, reducing trial-and-error corrections and getting the machine into tolerance faster.
Request More Information →
◷
Faster Machine Dial-InFewer adjustment iterations↘
Reduced RejectsReduce trial-and-error setup scrap◴
Reduced DowntimeShorten measurement-to-correction cycle⚙
Consistent CorrectionsApply defined engineering logic↗
Improved ProductionMore time producing acceptable parts✓
Tolerance FocusedMeasure, correct and verifyTurn Measurements
Into Machine Corrections
Enter actual inspection results and the Offset Generator calculates the required CNC offset adjustment. Make the adjustment, produce a verification part and repeat only if needed until the feature is inside tolerance.
1. MeasureObtain actual dimensions from CMM or in-process inspection.
2. CalculateThe system determines the correct offset adjustment for the operation.
3. AdjustMake the recommended offset change on the CNC machine.
4. VerifyProduce and inspect a new part until the feature is within tolerance.
